STUSLON Y901

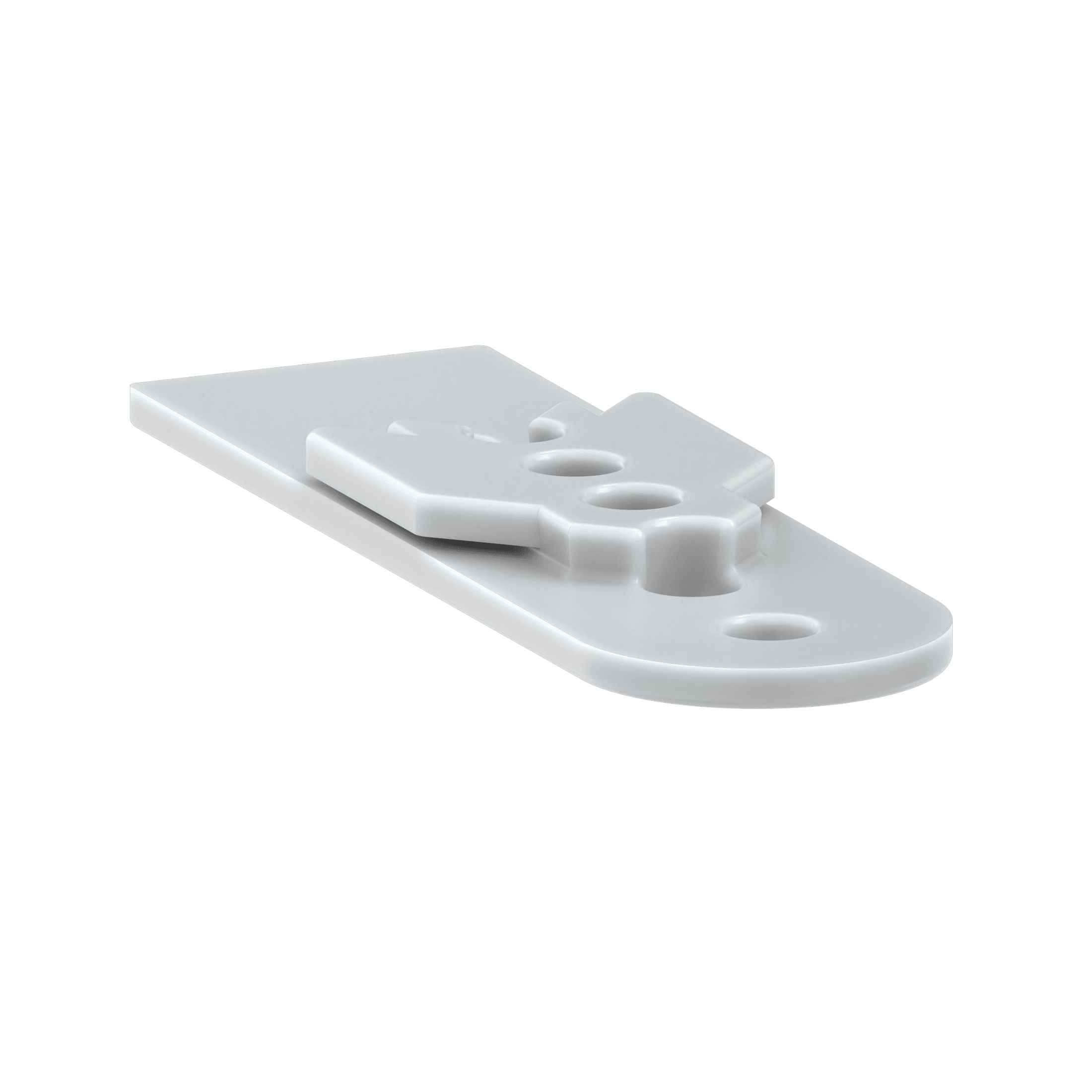

Jig STUSLON Y901 for trimming light diffuser DIFFUSY Y130 at a 45° angle. Light diffuser DIFFUSY Y130 is installed in the light-line profiles LIGHTRA X030, X030 S and LAMPLIX X930.

The diffuser is trimmed before the membrane is stretched. The jig is placed in the profile, and the diffuser is brought right up against it. The installer scores the diffuser with a knife along the jig, removes the jig and takes off the excess part of the diffuser.

Sandpaper is stuck to the jig and levels the ends of the diffuser after trimming, so the diffusers meet in the corner without gaps.
